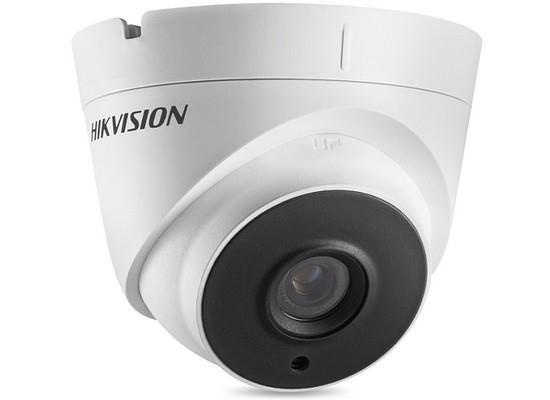

DS-2CE56D7T-IT1/IT3
HD1080P WDR EXIR Turret Camera
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
OSD menu, DNR, Smart IR
True WDR, up to 120dB
EXIR technology, up to 20/40m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C) |
|
| |
|
| Camera |
|
| Image Sensor: |
| |
2MP CMOS Image Sensor |
|
| Signal System: |
| |
PAL/NTSC |
|
| Effective Pixels: |
| |
1928(H)*1088(V) |
|
| Min. Illumination: |
| |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
| Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
|
| Lens: |
| |
2.8mm/3.6mm/6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm) |
|
| Lens Mount: |
| |
M12 |
|
|
| Adjustment Range: |
| |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
| Day& Night: |
| |
IR cut filter with auto switch |
|
| Wide Dynamic Range: |
| |
120dB |
|
| Video Frame Rate: |
| |
1080p@25fps/1080p@30fps |
|
| HD Video Output: |
| |
1 Analog HD output |
|
| Synchronization: |
| |
Internal Synchronization |
|
| S/N Ratio: |
| |
More than 62 dB |
|
| Up the Coax: |
| |
Support |
| Menu |
|
| Auto White Balance: |
| |
Auto/MWB |
|
| BLC: |
| |
Support |
|
| AGC: |
| |
Support |
|
| Language: |
| |
English/Chinese |
|
| Function: |
| |
Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR |
| General |
|
| Operating Conditions: |
| |
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
|
|
| Power Supply: |
| |
12 VDC±15% |
|
| Power Consumption: |
| |
Max5W
|
|
| Weather Proof: |
| |
IP66 |
|
| IR Range: |
| |
Up to 20m |
|
| Communication : |
| |
Up the coax
Protocol: HIKVISION-C(Coaxitron)
|
|
| Dimension: |
| |
φ110mm×93.2mm (φ4.33×3.67) |
|
| Weight: |
| |
350g (0.77lb) | |
|
|
|
| |
| | |
| |
|
|
