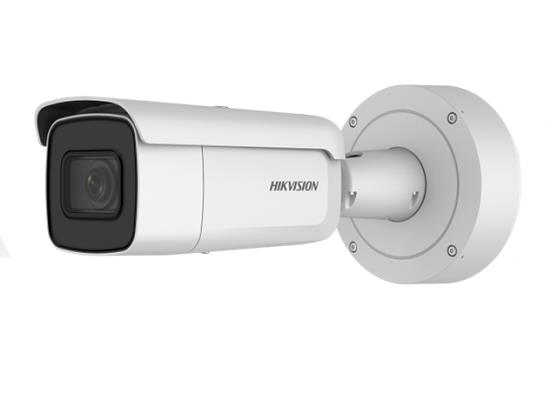

DS-2CD2625FWD-IZS
2 MP IR Vari-focal Blulet Network Camera 1/2.8" Progressive Scan CMOS 1920 × 1080 resolution 2.8 to 12 mm focal length Powered by Darkfighter H.265, H.265+, H.264+, H.264 120dB Wide Dynamic Range BLC/3D DNR/ROI IP67, IK10 4 behavior analyses and face detection
|
|
| |
|
| Camera |
|
|
|
|
|
|
|
| Image Sensor: |
| |
1/2.8" Progressive Scan CMOS |
| Signal System: | | PAL/NTSC | | Min. Illumination: | | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR | | Shutter time: | | 1/3 s to 1/100,000 s | | Slow shutter | | Support | | Lens: | | 2.8 to 12 mm
Horizontal field of view: 105°to 35°
Vertical field of view: 56°to 20°
Diagonal field of view: 126°to 40.5 | | Lens Mount: | | φ14 | | Adjustment Range: | | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355° | | Day& Night: | | IR cut filter with auto switch | | Wide Dynamic Range | | 120 dB | | Digital noise reduction: | | 3D DNR | | Focus | | Auto | |
|
|
| Compression Standard |
|
Video Compression:
Video bit rate: |
| |
H.264/MJPEG/H.264+
32Kbps~16Mbps |
| Triple Streams: | | YES | | Audio Compression: | | G.711/G.722.1/G.726/MP2L2/PCM | |
|
|
|
|
| Image |
|
| Max. Image Resolution: |
| |
1920 x 1080 |
| Sub Stream | | 50Hz: 25fps (640 × 480, 640 × 360, 352 × 288)
60Hz: 30fps (640 × 480, 640 × 360, 352 × 240) | |
| Frame Rate: |
| |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
| Third Stream: | | 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) | |
| Image Enhancement: | | BLC/3D DNR/HLC |
| Image Settings: |
| |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
|
| ROI: |
| |
Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch: | | Day/Night/Auto/Schedule/Triggered by Alarm In | |
|
| Network |
|
| Network Storage: |
| |
micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
|
| Alarm Trigger: |
| |
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
|
| Protocols: |
| |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour |
|
| General Function: |
| |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
|
| System Compatibility: |
| |
ONVIF (Profile S, Profile G),ISAPI |
| Interface |
|
| Communication Interface: |
| |
1 RJ45 10M / 100M Ethernet interfac |
| On-board storage: | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | | Reset Button: | | Yes | |
|
|
|
| Smart Feature-set |
|
| Behavior Analysis: |
| |
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
|
| Line Crossing Detection: |
| |
Cross a pre-defined virtual line |
|
| Intrusion Detection: |
| |
Enter and loiter in a pre-defined virtual region |
|
| Unattended Baggage: |
| |
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
|
| Object Removal |
| |
Objects removed from the pre-defined region, such as the exhibits on display. |
|
| Exception Detections |
| |
Scene change detection |
|
| Recognition: | | Face Detection |
| General |
|
| Operating Conditions: |
| |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
|
| Power Supply: |
| |
12 VDC ± 25%, PoE (802.3af Class3) |
|
| Power Consumption: |
| |
12 VDC, 1.2A, max. 14.5W
PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 16.5W |
|
| Impact Protection: |
| |
IK10 |
|
| Weather Proof: |
| |
IP67 |
|
| IR Range: |
| |
50 meters |
|
| Dimensions: |
| |
Φ153.4 × 133.1 mm (Φ6.04" × 5.24") |
|
| Weight: |
| |
Camera: Approx. 1287 g (2.84 lb.) | |
|
|
|
| |
| | |
| |
|
|
