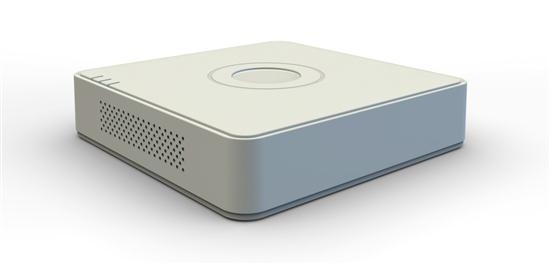

DS-7104/7108/7116HQHI-F1/N
Turbo HD DVR


    H.264 ,H.264+& Dual-stream video compression
    Support  HD-TVI, AHD and analog cameras with
    adaptive access

    Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N

    Support 1080P lite mode enabled to realize the real-time

    1080P lite and 720P lite resolution
    Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7116HQHI-F1/N

    Long transmission distance over coax cable
     Up  to 4/8-ch synchronous playback at 1080p resolution

     Playback at up to 256X speed.








Video/Audio Input
Audio Input: | 1-ch
Video Compression: | H.264,H.264+
Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types: | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input
Video Input Interface: | BNC (1.0 Vp-p, 75Ω)
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate: | Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps-6 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback: | 4-ch
Network management
Remote connections: | 128
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
General
Power Supply: | 12V DC
Consumption: | ≤ 8W(without hard disks)
Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: | 10% ~ 90%
Chassis: | Mini 1U chassis
Dimensions: | 200 × 200 × 45 mm
(7.9 × 7.9 × 1.8 inch)
Weight: | ≤0.8 kg(4.4lb)
