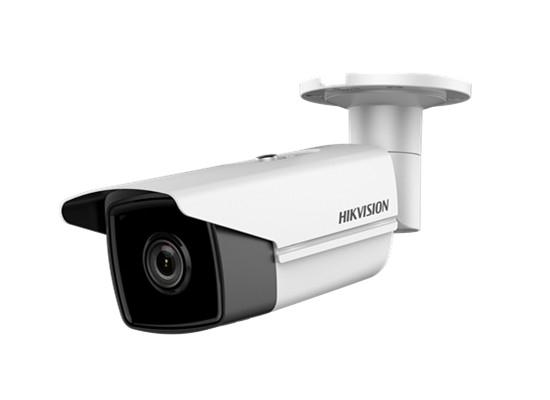

DS-2CD2T25FWD-I5/I8
2 MP IR Fixed Bullet Network Camera Up to 2 megapixel high resolution
Max. 1920 × 1080 @30fps
2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
Powered by Darkfighter
H.265, H.265+, H.264+, H.264
120dB Wide Dynamic Range
3D Digital Noise Reduction
DC12V & PoE (802.3af)
IR range: 50m, 80m, optional
Support on-board storage, up to 128 GB
IP67
Camera
Image Sensor: |
1/2.8" Progressive Scan CMOS
Signal System: PAL/NTSC Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter time: 1/3 s to 1/100,000 s Slow shutter Support Lens: 2.8 mm, horizontal field of view: 108° 4 mm, horizontal field of view: 86.4° 6 mm, horizontal field of view: 52° 8 mm, horizontal field of view: 41° 12 mm, horizontal field of view: 25° Lens Mount: M12 Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° Day& Night: IR cut filter with auto switch Wide Dynamic Range 120 dB Digital noise reduction: 3D DNR Focus FIXED
Compression Standard
Video Compression:
|
H.264/MJPEG/H.264+ 32Kbps~16Mbps
Triple Streams: YES
Max. Image Resolution:
|
1920 x 1080
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 352 × 288) 60Hz: 30fps (640 × 480, 640 × 360, 352 × 240)
Frame Rate:
|
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) Image Enhancement: BLC/3D DNR/BLC
Image Settings:
|
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:
|
Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage:
|
micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:
|
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:
|
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:
|
ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:
|
1 RJ45 10M / 100M Ethernet interfac
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Reset Button: Yes
Smart Feature-set
Behavior Analysis: |
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: |
Cross a pre-defined virtual line
Intrusion Detection: |
Enter and loiter in a pre-defined virtual region
Unattended Baggage: |
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal |
Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections |
Scene change detection
Recognition: Face Detection
General
Operating Conditions:
|
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:
|
12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:
|
-I5: 12 VDC ± 25%, 7 W; PoE, 9 W -I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Weather Proof:
|
IP67
IR Range:
|
-I5: up to 50 m; -I8: up to 80 m
Dimensions:
|
Camera: Φ105 × 299.7 mm (Φ4.13″ × 11.80″) Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Weight:
|
Camera: Approx. 1200 g (2.65 lb.)
